Corrosion Resistant Prefabricated Steel Structure Warehouse with Energy Efficient Modular Installation

Brand Name : KXD

Model Number : KXD-SSW1059

Certification : ISO, SGS, CE, BV

Place of Origin : Qingdao

MOQ : 200 Square Meters (MOQ)

Price : US$50.00-100.00

Payment Terms : T/T

Supply Ability : 5000ton/Month

Delivery Time : 30days

Packaging Details : pallet

Visit : Workshop Visit And Check Available

Material Grade : Q355B, Q235B

Energy Efficiency : High

Installation Method : Modular/On-site

Product Resistance : Corrosion Resistant

Contact Now

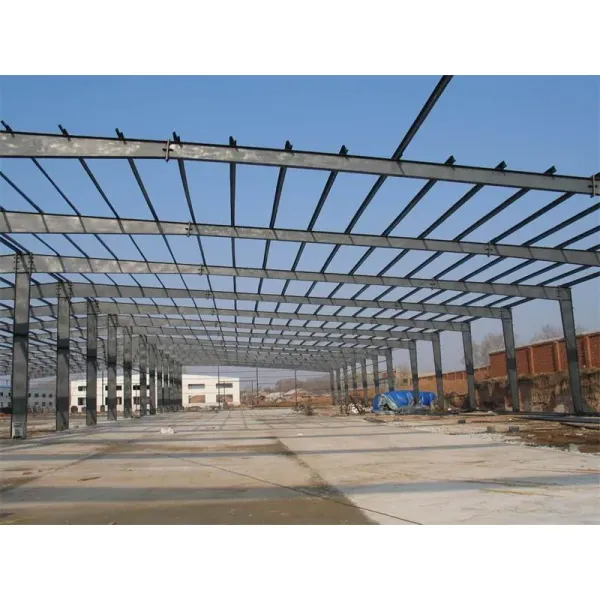

Prefabricated Steel Structure Storage Warehouse

Product Overview

Steel structure building is widely used as workshop, warehouse, factory, prefabricated house, hotel, church, garage, etc. It is durable, economic and environmentally friendly.

Corrosion Resistant Prefabricated Steel Structure Warehouse with Energy Efficient Modular Installation

Technical Specifications

Specification	Details
Model Number	KXD-SWT070
Usage	Warehouse, Temporary Offices, Workshop
Certification	ISO, CE
Main Steel Frame Material	Metal
Wall and Roof Sandwich Panel	EPS/Rock Wool/Glass Wool/PU Sandwich Panel
Size	According to The Need of Design
Grade	Q235B & Q345B
Connection Method	Welding or Bolt
Window	Aluminium Alloy
Door	Sliding or Roll up
Origin	Qingdao, China
Production Capacity	600 sets / Month

Steel Structure Workshop Features

Different sizes: MOQ is 100m², width × length × eave height
Different types: Single slope, double slope, single span, double-span, multi-span, single floor, double floors
Different Bases: Cement and steel foundation bolts
Different Columns and Beams: Material Q345(S355JR) or Q235(S235JR) steel, all bolt connections
Different bracings: X-type or V-type or other type bracing made from angle, round pipe
Different Purlins: C or Z type: Size from C120~C320, Z100~Z200
Different Roof and Wall Panel: Single colorful corrugated steel sheet or sandwich panel with EPS, ROCK WOOL, PU insulation
All accessories: Semi-transparent skylight belts, Ventilators, down pipe, Galvanized gutter
Surface: Two layers of Anti-Rust Paint
Packing: Main steel frame without packing load in 40'OT, roof and wall panel load in 40'HQ

Required Design Parameters

You ONLY need to provide us with the following information:

Live load on roof (KN/M²)
Wind speed (KM/H)
Snow load (KG/M²) - If Applicable
Earthquake load - If Applicable
Style of Doors and Windows
Crane specifications (if applicable)
Size: width × length × eave height, roof slope
Or your specific requirements and ideas!

Our team will guide you to choose the right style and finest design within your budget.

Steel Structure Categories

Simple Steel Structure Workshop

Main Structure	Single span: L - shorter than 18m, H - lower than 6m
Maintenance System - Roof	Colored steel sheet with 50mm glass wool insulation
Maintenance System - Wall	Colored steel sheet
Door	Simple steel rolling shutter (within 10m²)
Window	Very few
Usage	Warehouse, workshop
Standard & Suitable Market	Africa, Middle-East, South America (no snow, wind load below 0.4kn/m²)

Standard Steel Structure Workshop

Main Structure	Single span: L - shorter than 24m, H - lower than 8m
Maintenance System - Roof	Colored steel sheet with 50mm glass wool insulation
Maintenance System - Wall	Colored steel sheet or 50mm EPS sandwich board
Door	Wind resistance rolling door (within 15m²)
Window	Aluminium Alloy (can use with skylight)
Usage	Warehouse, workshop, shopping mall, exhibition hall, super market
Standard & Suitable Market	Snow loading below 0.5kn, wind loading below 0.5kn/m²

Cold Region (Heavy Snow) Steel Structure Workshop

Main Structure	Single span: L - shorter than 18m, H - lower than 6m
Maintenance System - Roof	EPS/rock wool/PU sandwich board
Maintenance System - Wall	EPS/rock wool/PU sandwich board
Door	PU foamed rolling door
Window	Aluminium Alloy, Hollow glass
Usage	Warehouse, workshop, shopping mall, exhibition hall, super market
Standard & Suitable Market	Cold regions such as Norway, Russian, North Canada, Finland, Iceland, Greenland, Sweden (snow loads below 3kn, wind load below 1KN/M²)

Six Reasons Steel Buildings Make the Best Warehouses

1) Maximize Space

Steel buildings can be constructed without interior columns, maximizing valuable floor space and eliminating obstacles for machinery and labor operations. This is crucial for optimizing storage capacity and workflow efficiency.

2) Expansion-friendly

Steel buildings offer simple expansion capabilities for growing businesses. Properly erected and maintained structures can be easily extended rather than requiring entirely new construction.

3) Strong & Durable

Steel provides superior strength and durability for commercial and industrial applications. Steel buildings withstand impact damage from heavy objects and machinery better than other building materials.

4) Resistant to the Elements

Steel buildings handle diverse environments and climates effectively. They offer excellent fire resistance for combustible material storage, lightning protection through grounding, and engineered wind resistance for various exposure conditions.

5) Energy Efficient

Metal's reflective properties help maintain cooler temperatures in sunny months. Combined with proper insulation and specialized reflective coatings, steel buildings provide excellent temperature control and energy efficiency.

6) Customizable Exterior

Steel buildings offer extensive customization options for appearance, including eaves, garage doors, skylights, and branding elements to match specific company requirements and local aesthetics.
